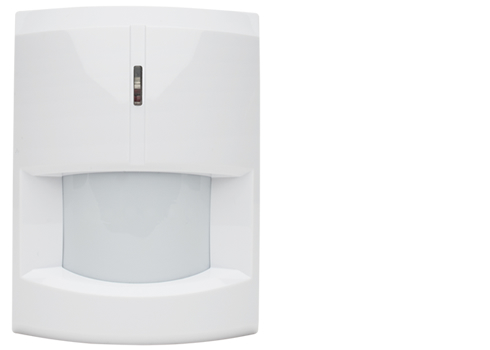

Wave Motion Detector

Inactivity monitor.

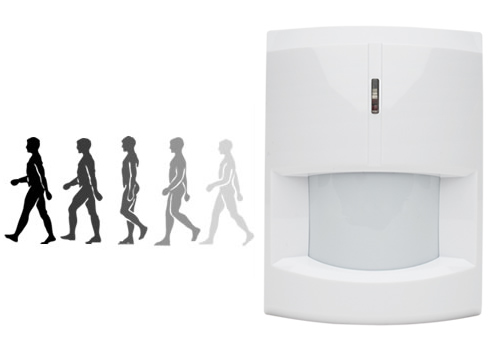

When used concurrently with our base units, Wave acts as an inactivity monitor. If motion is not detected in a home for a programmable period of time, an inactivity alert is sent to the monitoring station and the appropriate help is dispatched. Quick action saves lives. Wave can be an invaluable accessory to add to a personal emergency response system.

Trust only the best and highest quality motion detection.

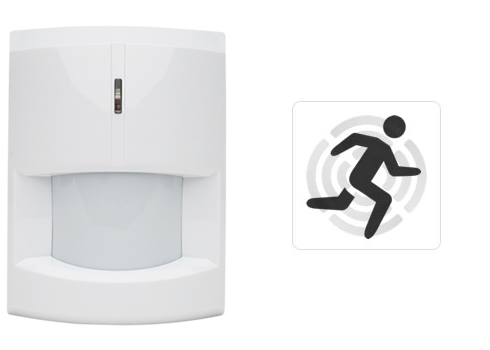

Controlled by a microprocessor, Wave offers advanced Adaptive Digital Signal Processing (ADSP) algorithms that maintain a stable and sensitive level of detection despite outside interference or environmental changes. With superior white light and noise rejection, Wave is both insect and dirt proof, allowing for accurate motion detection. The sensitivity levels of Wave can also be configured and adjusted to suit the personal needs of the user.

Wave Motion Detector
Wave Motion Detector

Combine exceptional battery life and excellent performance and quality.

With an extensive battery life of 4 to 6 years, Wave was specially designed to maximize operational efficiency, lower power consumption and reduce maintenance costs. In addition to being easy to install and tamper-proof, Wave also sends regular supervision signals to check for system integrity.

Compatibility:

  • Epic Alert Apex
  • Microprocessor controlled with advanced Adaptive Digital Signal Processing (ADSP) algorithms for false alarm immunity
  • Powered by pre-inserted alkaline batteries
  • Two selectable sensitivity levels
  • Low battery detection
  • Automatic power saving mechanism
  • Superior white light and noise rejection
  • Detection range of 12 meters over a 110° angle
  • Randomized supervision signals for system integrity checks and troubleshooting
  • LED serving as a fault/test mode indicator and walk test mode activation button
  • Power: 12V 500mA adaptor
  • Backup battery: 7.2V 600mAh Ni-Mh rechargeable battery x 6
  • Battery backup time: 18 hours minimum
  • Frequency available: 433 MHz Super-Heterodyne
  • Range: 120 meters in open space
  • Operating temperature: -10° to +45°C
  • Humidity: up to 90% non-condensing
  • Dimensions: 178 X 120 X 32 mm

Datasheet

EPIC Alert Wave Motion Detector Datasheet
